Financing Application
+32- Our Price: $58,887
- MSRP Sale Price: $85,954
- Save: $27,067
-
30ft long
-
8,050 lbs
-
Sleeps 2
-
1 slides
-
Rear KitchenFront Bedroom

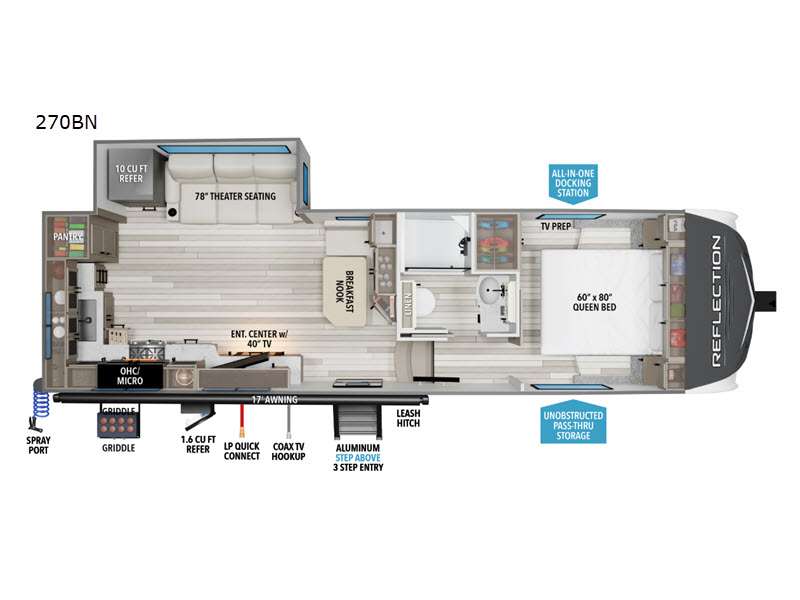

270BN Floorplan
Specifications
| Sleeps | 2 | Slides | 1 |
| Length | 29 ft 11 in | Ext Width | 8 ft |
| Ext Height | 12 ft | Hitch Weight | 1200 lbs |
| GVWR | 9995 lbs | Dry Weight | 8050 lbs |
| Fresh Water Capacity | 55 gals | Grey Water Capacity | 78 gals |
| Black Water Capacity | 39 gals | Tire Size | ST225/75R15LRE |
| Available Beds | Queen | Refrigerator Type | 12V |
| Refrigerator Size | 10 cu ft | Cooktop Burners | 3 |
| Shower Size | 30" x 36" | Number of Awnings | 1 |
| LP Tank Capacity | 30 lbs. | Water Heater Type | On Demand Tankless |
| AC BTU | 15000 btu | TV Info | LR 40" LED HDTV |
| Awning Info | 17' One Touch Electric w/LED Lights | Axle Count | 2 |
| Number of LP Tanks | 2 | Shower Type | Walk-In Shower |
| Electrical Service | 50 amp | VIN | 573FR3128T3354961 |
Description
FINANCE INCENTIVE PRICE
THIS UNIT IS EQUIPPED WITH THE FOLLOWING OPTIONS:
- Reflection 150-Series Peace of Mind Package
- Reflection 150-Series Ultimate Power Package
- Reflection 150-Series Deep Season Protection Package
- Reflection 150-Series Solar Package
- Goodyear Tires
- ABS Axle Assembly w/Sway Control
- CURT Touring Coil Suspension and Helux Pinbox System
- Winterization
- Internet Ready (Router Prep & Starlink Prep)
- SafeRide RV Roadside Assistance
- 8K Ducted 2nd A/C
- RVIA Seal
Grand Design Reflection 150 Series fifth wheel 270BN highlights:
- Outside Griddle
- Walk-In Shower
- Breakfast Nook
- Outdoor Spray Port
You will love this fifth wheel featuring a single slide for added interior living space and all the comforts and conveniences it provides you while you travel. The slide features a 78" theater seat plus there is a breakfast nook for more seating. Both can easily view the entertainment center with 40" TV. A rear kitchen indoors provides everything you need to create meals like home while on the road, and if you want to spend as much time outside as possible, then the outdoor griddle will certainly accommodate you for meals. Up front, a cozy private bedroom with queen bed, wardrobe, and overhead cabinets. Right next door, you will find a large walk-in shower, as well as a toilet, and a vanity with sink and linen cabinet for your towels and toiletries. You will also love the full unobstructed pass-through compartment for all of your gear, plus so much more!
With any Reflection 150 Series fifth wheel by Grand Design, there is more available payload capacity and a broader range of half-ton trucks capable of towing this fifth wheel, and no slider hitch is needed thanks to the 90-degree turning radius which makes them short bed friendly and easier to tow. The mandatory Ultimate Power package provides a "One-Touch" automatic leveling system and a detachable power cord with LED light for easy setup, plus motion sensor pass-through lighting and entry lighting, and the Tire Linc TPMS will help you stay safe on the road. The interior offers residential cabinetry and premium Congoleum flooring, to the booth dinette and residential-style window treatment. Make your refined decision today!
Features
Standard Features (2026)
Exterior
- 80% Tint Radius Safety Glass Windows
- Helux Pinbox
- 30# LP Bottles (2)
- 30" Radius Entry Door
- Outside Shower
- Factory Installed Roof Ladder
- Exterior Cable Hookup (Sidewall)
Construction
- Aerodynamic Front Cap with Max Turn Radius
- Gel Coated Exterior Sidewalls
- Residential 5" Truss Rafters (16" O.C.)
- Walk On Roof Decking
- Fiberglass and Radiant Foil Roof and Front Cap Insulation
- One-Piece TPO Roof Membrane with Limited Lifetime Warranty
- Laminated Aluminum Framed Rear Wall (R-9)
- Laminated Aluminum Framed Side Walls (R-9)
- Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
- Aluminum Framed Main Floor (R-30*)
- Residential Wood Framed Roof (R-40*)
Running Gear
- Aluminum Wheels with E-Rated Tires
- Under Carriage Spare Tire and Carrier
- Anti-Lock Braking (ABS) w/ Sway Control
- CURT Touring Coil Suspension System
Interior
- Matte Black Fixtures and Hardware
- Hardwood Galley Slide Trim Moldings
- Solid Hardwood Drawer Fronts
- Louvered Tread Steps to Bedroom
- Solid Core Cabinet Stiles
- Pre-Drilled and Screwed Cabinetry
- Ball Bearing Full Extension Drawer Glides
- Large Panoramic Slide Room Windows
- Heated Theatre Seats w/LED Lights & Massage (Most Models)
- Premium Congoleum Flooring
- Ductless Flooring Throughout Living Area
- Residential Style Window Treatment
- Blackout Roller Shades
- LED Lighting with Motion Sensors (Key Areas)
- Soft-Close Hinges
Kitchen
- Deep-Seated Stainless-Steel Sink
Electrical
- Marine Grade LED Hitch Light
- Battery Kill Switch in Pass Thru Storage Area
- 180W/370W Roof Mounted Solar Panel (floorplan specific)
- Roof Mounted Quick Connect Plugs
- 60 Amp Charge Controller
- Inverter Prep
- Solar Disconnect
HVAC
- Adjustable A/C Vents
- 35k BTU High-Capacity Furnace
Plumbing
- High-Capacity Water Pump with Interior and Exterior Switch
- Extra Large 2" Fresh Water Drain Valve
- Easy Access Low Point Drain Valves
- Brass Fittings
- On Demand Water Heater
Bedroom
- Functional Wardrobe Closet
- Oversized Bed Base Storage
- 60 x 80 Mattress with Residential Bedspread
- Bedroom Heat Registers
- Washer/Dryer Prep (on most models)
Bathroom
- 30 x 36 Residential Walk-In Shower
- Heat Duct and A/C Vents in Bathroom
- Power Vent Fan
- Large Vanity Top w/ Deep Sink
- Large Medicine Cabinet with Mirror
Appliance
- 12V 16 or 10 Cu. Ft. Refrigerator (floorplan specific)
Electronics
- Cable/SAT Prep
Packages
Peace of Mind Package
- Residential Cabinetry
- Universal All-In-One Docking Station
- Metal Slam Latch Front Cargo Doors
- On Demand Water Heater
- Porcelain Toilet with Foot Flush
- High-Rise Faucet with Pullout Sprayer
- Aluminum Entry Steps
- Theatre Seats
- Painted Fiberglass Front Cap
- Residential Booth Dinette
- LP Quick Connect
- Blackout Roller Shades
- 6' Coiled Break Away Cable
- Deep-Seated Stainless-Steel Kitchen Sink
- Walk-on Roof
- Aluminum Rims
- Spare Tire & Carrier
- 2” Receiver Hitch Upgrade
- 90 Degree Turn Radius Pin Box (Turning Point)
Ultimate Power Package
- 30" Stainless Steel Microwave
- 15K Ducted Main A/C
- "One-Touch" Electric LED Awning
- Maxx Air Fan
- AM/FM/CD/DVD HDMI Bluetooth Stereo
- 50 AMP Service, Wired and Framed for 2nd A/C
- High-Definition LED TV
- Detachable Power Cord with LED Light
- "One-Touch" Automatic Leveling System
- LED Interior Lighting
- Motion Sensor Pass Thru Lighting
- Motion Sensor Entry Lighting
- Compass Connect
- Tire Linc TPMS
Arctic 4-Seasons Protection Package
- 35k BTU High-Capacity Furnace
- Double Insulated Roof & Front Cap
- Heated & Enclosed Dump Valves
- Heated & Enclosed Underbelly w/Circulating Heat
- Thermofoil Insulation under Holding Tanks
- EZ Winterization Valve in Utility Center
- Insulated Slide-out Floors
- Dual Attic Vents
- 12v Heat Pads on Holding Tanks
- Heated Pass Thru Storage Area
Solar Protection Package
- 180W/370W Roof Mounted Solar Panel (floorplan specific)
- Roof Mounted Quick Connect Plugs
- 60 Amp Charge Controller
- 12V 10 or 16 Cu. Ft. Refrigerator (floorplan specific)
- Inverter Prep
- Solar Disconnect
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
