Used 2016 Keystone RV Montana 3100 RL

Fifth Wheel

Stock #C5927

Nipomo

Adventure Awaits!

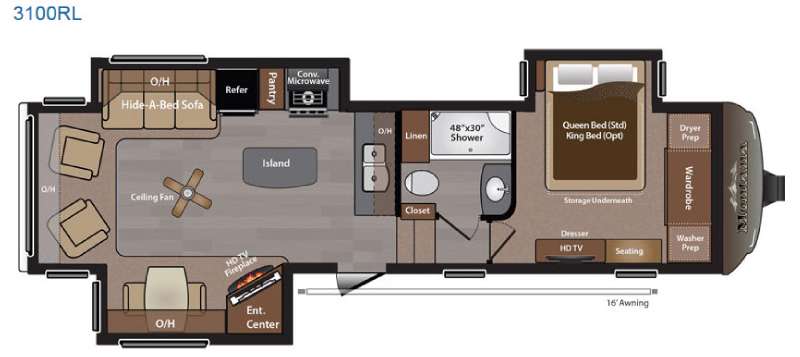

Floorplan - 2016 Keystone RV Montana 3100 RL

1 of 6

Sleeps 4
3 Slides
Rear Living Area

Kitchen Island

35ft Long
11,400 lbs
Java, Nightfall

See All Specs

Specifications

Sleeps	4	Slides	3
Length	35 ft 3 in	Ext Width	8 ft
Ext Height	13 ft 5 in	Interior Color	Java, Nightfall
Hitch Weight	2545 lbs	Dry Weight	11400 lbs
Cargo Capacity	4600 lbs	Fresh Water Capacity	66 gals
Grey Water Capacity	93 gals	Black Water Capacity	50 gals
Tire Size	ST235/80R16E	Furnace BTU	35000 btu

Call 800-847-2989

Features

Standard Features (2016)

Living Area

Front to Rear Interior Vaulted Ceiling
Glazed Zinfandel Cherry Cabinetry
Brushed Nickel Decorative Light Fixtures
6’6” Tall Main Slideouts
Extra Large Ceiling Crown Molding with LED Lighting
Solid Hardwood Slideout Fascia
Flush Mounted LED Interior Lights
Ceiling Fan with Light Kit
Roller shades throughout

Kitchen

Solid Surface, hinged Range Covers
Stainless Steel 22” Oven with Broiler
Polar Max 18 Cubic Foot 4 Door RV Refrigerator
Free Standing Dinette
Pullout trash can drawer (Most models)
Solid Surface, Flush Mount Sink Covers
Stainless Steel 30” Over-The-Range Convection/Microwave Oven with Range Hood
High Output Range with Automatic Igniter
Residential French Door Refrigerator with Bottom Freezer and 1000 Watt Inverter (3611, 3661, 3711, 3721, 3791, 3911))
Power Vent Fan with Rain Sensor (Kitchen)
Central Vacuum with Interior and Exterior Ports Plus Toe Kick Sweep

Home Entertainment

40” or 48” HD Flat Panel TV in Living Area
DVD/CD/MP3 Bluetooth entertainment system
Exterior HDTV (3160RL, 3660RL, 3661RL)
32” HD Flat Panel TV in Bedroom
Bedroom, exterior & living room 3 zone sound system
HD Digital TV Antenna with Booster

Bedroom

iRelax High Density Posture Mattress
Massive Underbed Storage
(2) Bedside Electrical Outlets
Integrated Bedside Nightstands
2-Piece Washer and Dryer Closet

Bathroom

Solid Surface Bathroom Vanity
Sky Light Over Shower
Seamless 48” x 30” Fiberglass Shower
Deluxe Porcelain Footflush Toilet

Four Season

Tested and Approved for 0 Degree Usage Since 2005
(R-15) Insulated Slideout Floors
(R-38 Equivalent) Radiant Technology Insulated Roof
High Capacity 3” x 14” Foam Core Straight Line Heat Duct System
Insulated in-floor water lines
Heated Exterior Convenience Center
30K BTU Dual whisper Quiet A/C System (Twin 15K A/C's)
(R-21) Insulated Main Floor
(R-11) Insulated Double Layer Supported Fiberglass Sidewalls
35,000 BTU Furnace with Auto Ignition plus 5100 BTU fireplace
Fully Vented Attic System
Enclosed, Insulated and Heated Holding Tanks and Dump Valves
12v Electric Tank Heaters
Enclosed and Heated City Water Low Point Drains

Towing

Wireless Back-up Camera with In Vehicle Mobile Display
Best in Class MOR/Ryde Hitch Pin Box
Heavy Duty Wet bolt Kit with Bronze Bushings and ½1/2” Shackle Links
8-Lug Aluminum Wheels (Rated up to 110 PS)
Undermount Spare Tire & Carrier
Front window automotive windshield (Select Models)
Patented ‘Max Turn’ Front Cap with Hitch Vision Mirror and LED Profile Lighting
MOR/Ryde CRE 3000 Suspension System
7000 lbs Dexter™ E-Z Lube Axles with Self Adjusting Brakes
Back-Up Lights

Exterior and Construction

High Gloss Gel Coated Fiberglass Exterior
Insulated Slam Latch Pass Through Storage Compartment Doors with Gas Struts
Adjustable and Lockable Electric Awning with LED Lighting
Four Step Entry w/ aluminum step treads
5” Arched Rafters
2” Welded Aluminum Framed Walls, floors, sidewalls
50amp Service
Solar Panel Prep
50 gallon black tank capacity
62 gallon fresh water capacity
Automotive Frameless Safety Glass Windows
Enormous Drop Frame Pass Through Storage Compartment
30”x78” Oversized Entry Door
Oversized Fold Away Entry Handle
12” Steel Powder Coated I-Beam Frame
Laminated Sidewalls with Dual Layered Luan and EGS Metal Backing Strips to Anchor Interior Cabinets
2” Welded Aluminum Framed Slideouts
Seamless 5/8” Thick Dynaspan® Floor Decking
(2) Patio Security Lights
75amp Converter
12 Gallon DSI Gas/Electric Water Heater
93 gallon gray tank capacity

Exterior Convenience Center

City Water Hook-up
Black Tank Flush
Water Heater Bypass Switch
Battery Disconnect
Outside Shower with Quick Connect Hose
Power Tank Fill
Easy Winterization Kit
Enclosed Low Point Drains

Residential Living Package **Mandatory**

Best in Class MOR/Ryde Hitch Pin
Wireless Back-up Camera with in Vehicle Mobile Display
Free Standing Dinette with (2) Fixed and (2) Folding Chairs
6’6” Extra Tall Main Slideout Heights
Upgrade Solid Surface Kitchen and Bathroom Countertops with Range and Sink Covers
30” OTR Convection Microwave
French Door Residential Refrigerator w/ ice maker
Central Vacuum with Interior and Exterior Ports and Toe Kick Sweep Convenience
Patented ‘Max Turn” Front Cap with Hitch Vision and LED Profile Lighting
MOR/Ryde CRE 3000 Suspension System
Slam Latch Pass Through Storage Compartment Doors
Front to Rear Interior Vaulted Ceiling
Washer and Dryer Prep
LED Interior Lighting
Glazed Hardwood Cherry Cabinet doors and Drawers
RV Four Door Refrigerator
Power Vent Fan in Kitchen

Four Season Living Package **Mandatory**

Insulated and Enclosed Underbelly
(R-21) Insulated Main Floor
(R-11) Insulated Double Layer Supported Fiberglass Sidewalls
Full Vented Attic
12v Electric Tank Heaters
(R-15) Insulated Slideout Floors
(R-38 Equivalent) Radiant Technology Insulated Roof
Heated Pass Through Convenience Center

Montana Legacy Edition **Optional**

Decorative fiberglass rear cap
Exclusive MOR/Ryde LRE 4100 Suspension
Hardwood Cherry Cabinet Framing (stiles)
iN-Command Control System
Upgrade day/night roller shades
Rear accessory hitch

Options

Correct Track Trailer Alignment System (Mandatory)
6 Point Hydraulic Automatic Leveling System (Mandatory)
Dual Pane Frameless Safety Glass Windows
Slide Awning Package
(5) Goodyear ‘G’ Range Tires
30K BTU Dual whisper Quiet A/C System (Twin 15K A/C's) (Mandatory)
Generator Ready (Onan 5.5 kw Specifications)
Onan Marquis Gold 5.5 kW LP Generator (Requires Gen. Ready)
Full Body Paint
Electric Fireplace (Mandatory)
King Size Bed
Power Vent Fan in Bathroom
Power Vent Fan in Toilet Room
Power Vent Fan in Bedroom (N/A with 2nd A/C)
High Back Desk Chair with Step Ladder
Booth Dinette in place of Free Standing Dinette (N/A 3710, 3711, 3790, 3791)
Theater Seat in place of Recliners (N/A 3710, 3711)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.
